Tunnel Gantry NPEC

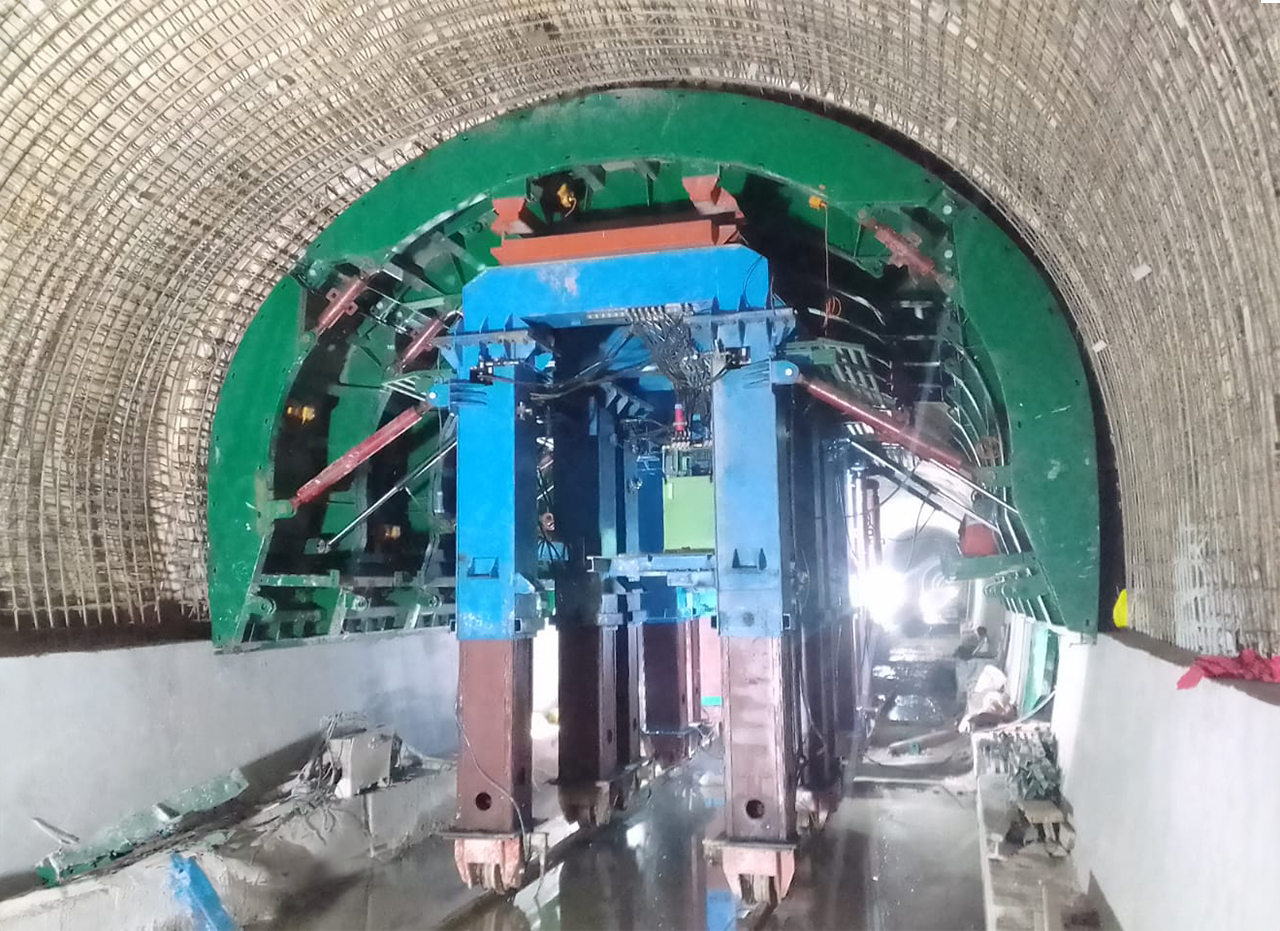

At National Power Engineering Company (NPEC), our Tunnel Formworks and Gantries are highly regarded in the industry. We fabricate a diverse range of Tunnel Formworks, with diameters ranging from 3.3 meters to 20 meters. Our offerings include fully mechanical and hydraulic gantries, as well as combinations tailored to project needs. We create various designs, including horseshoe, modified horseshoe, D-type, and bell mouth gantries. Additionally, we develop specialized solutions for specific tunnel locations, such as cavern, pocket, T-junction, and Y-junction gantries. With our commitment to quality, NPEC ensures efficient and safe project execution.

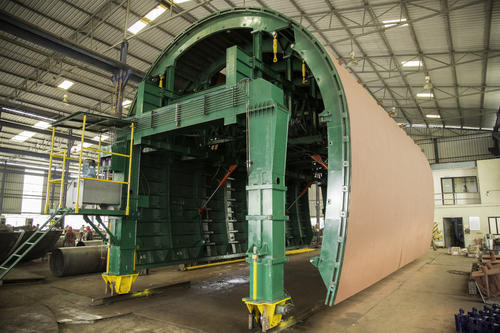

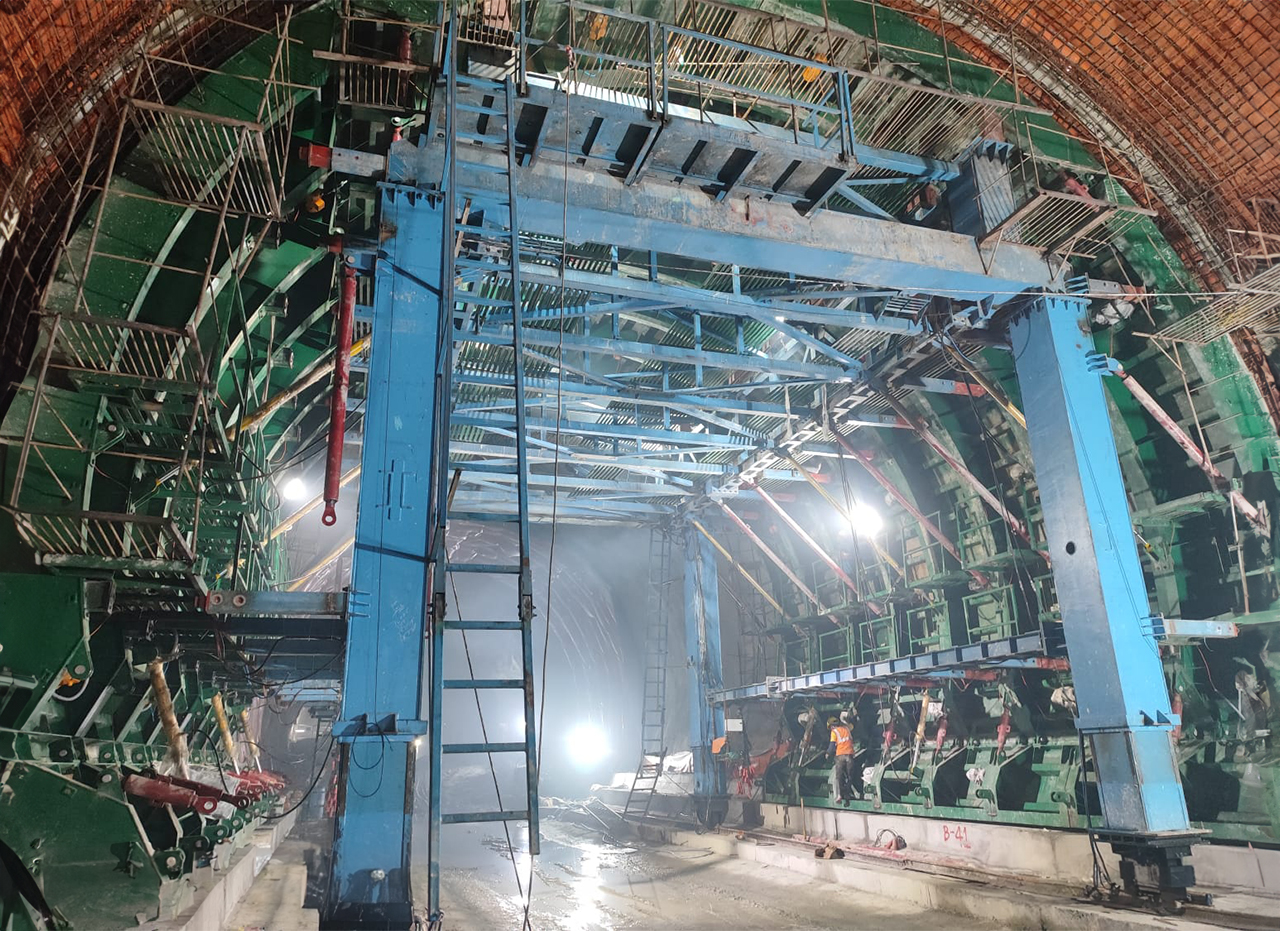

One of our signature gantries is a 15-meter long, 20-meter diameter, and 16-meter high structure with a 2.5-meter concrete lining. Lightweight yet strong, our tunnel gantries ensure reliable, long-term performance for various tunnelling projects without complications.
Some of the advantages of using NPEC tunnel formworks are
- Very fast delivery cycle.
- Our technician installs the gantry and educates the client in its operation and maintenance.
- Mock assembly is done at works and hence very fast installation at site.
- After sales support is very prompt.
- Best hydraulic components are used which guarantees trouble free operation for years.
- Every system has a double lock and hence very safe.
- In house Structural and Hydraulic design team.
Our various tunnel gantry offerings are given below.
- Self propelled hydraulic tunnel formwork
- Horse shoe hydraulic/mechanical tunnel gantry
- D type hydraulic/mechanical tunnel gantry
- Cavern tunnel gantry
- Modified horse shoe hydraulic tunnel gantry
- Pocket tunnel gantry
- T junction tunnel gantry
- Y junction tunnel gantry
- Bellmouth tunnel gantry
- Mechanical tunnel formwork
Tunnel work accessories
- Rock bolts
- Ribs
- Lattice girders
- Anchor bolts
- Bearing plates
- Sn rock bolts
- Air duct ventilation pipe line
- Turn buckle
- Screw jack
- Steel flush doors
- TBM: Cradle
- TBM: Reaction Frame
- TBM: Eye Seal

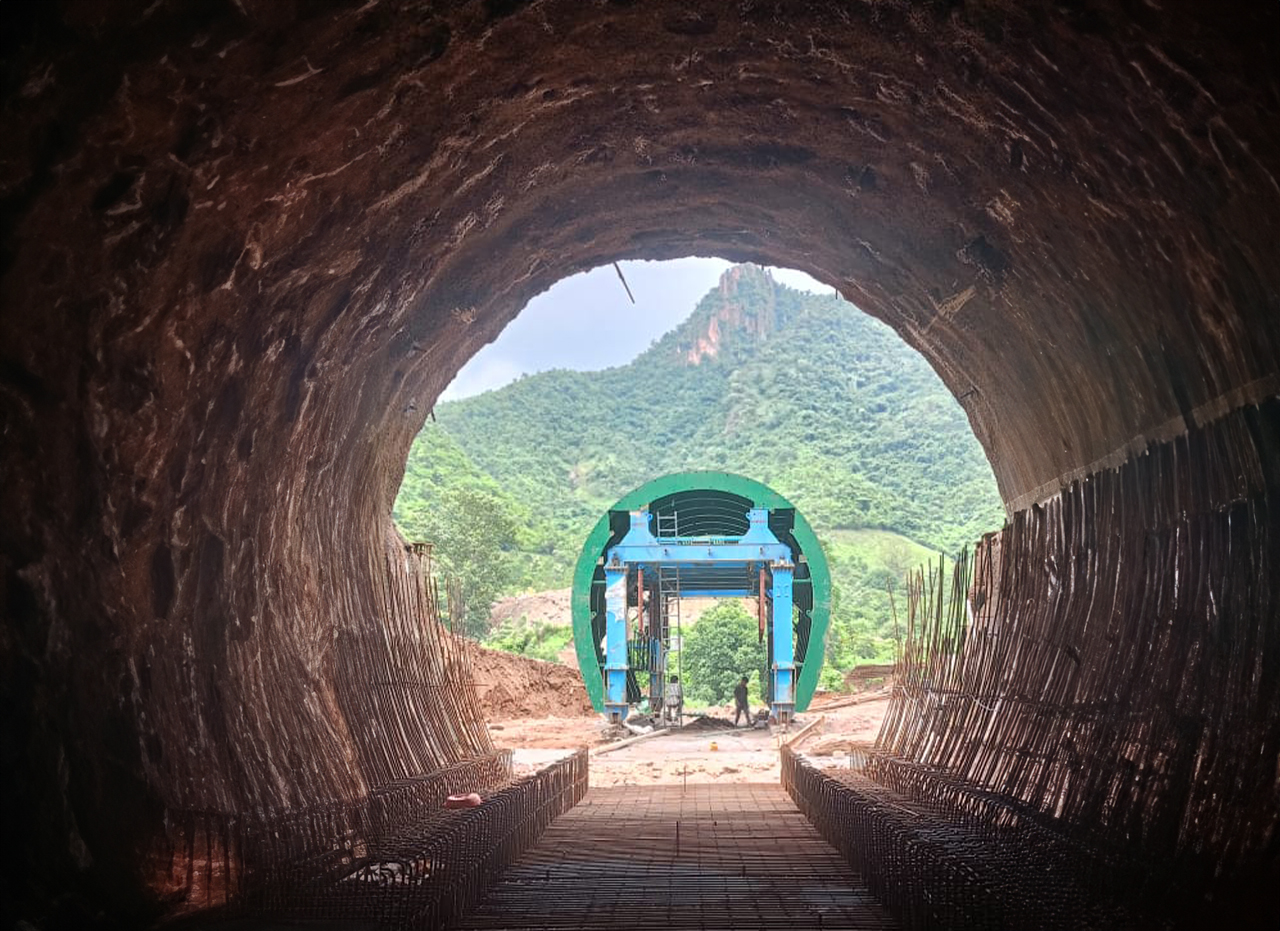

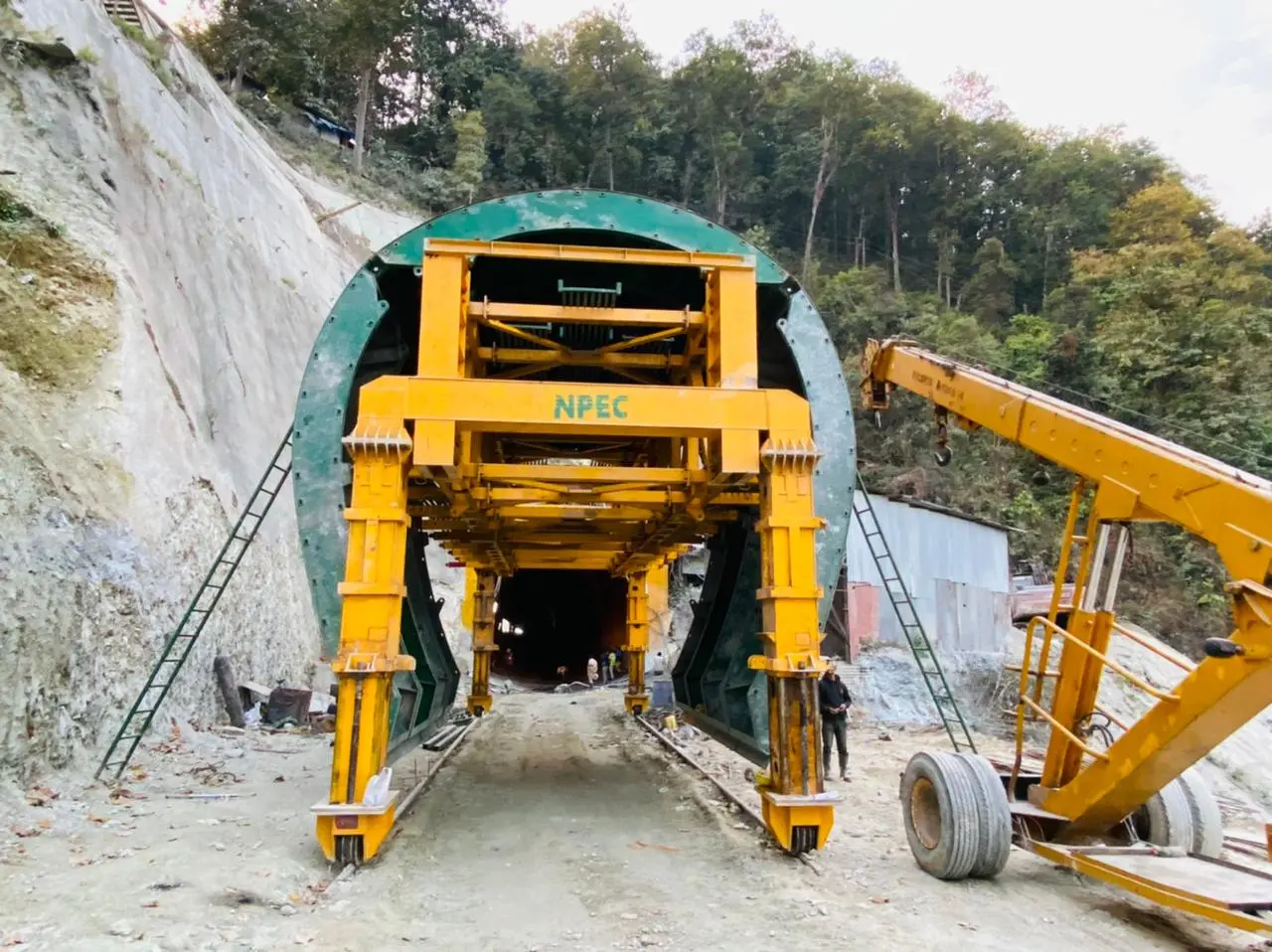

Recently completed projects
Conclusion
